2L Plastic Extrusion Molding Machine Meper 55D 45 HDPE Plasticizing Ability

چین Ningbo Qiming Machinery Manufacturing Co., Ltd. گواهینامه ها
چین Ningbo Qiming Machinery Manufacturing Co., Ltd. گواهینامه ها
بزرگترین مزیت دستگاه Meper بدون هیچ گونه نگرانی بسیار پایدار است. برخی از ماشینهای ما 10 سال است که در حال استفاده هستند و هنوز در حال استفاده طبیعی هستند. دستگاه meper عالی است.

—— خوزه (برزیل)

من دستگاههای مپر را به دلیل خدماتشان دوست دارم. آنها همیشه مشکلات را به موقع برای ما حل می کنند ، بنابراین من دستگاه Meper را به شدت توصیه می کنم.

—— KUMAR (هند)

دستگاه Meper بسیار خوب است. اگرچه کشور ما بسیار گرم است ، اما ماشین آلات بسیار با سرعت کار می کنند.

—— محمد (سعودی عربی)

دستگاه Meper بسیار خوب است. هوروشی

—— IWANOWSKI (روسیه)

مپر ، دستگاه خوب ، خدمات خوب.

—— جان (آفریقای جنوبی)

چت IM آنلاین در حال حاضر

2L Plastic Extrusion Molding Machine Meper 55D 45 HDPE Plasticizing Ability

2L Plastic Extrusion Molding Machine Meper 55D 45 HDPE Plasticizing Ability
2L Plastic Extrusion Molding Machine Meper 55D 45 HDPE Plasticizing Ability

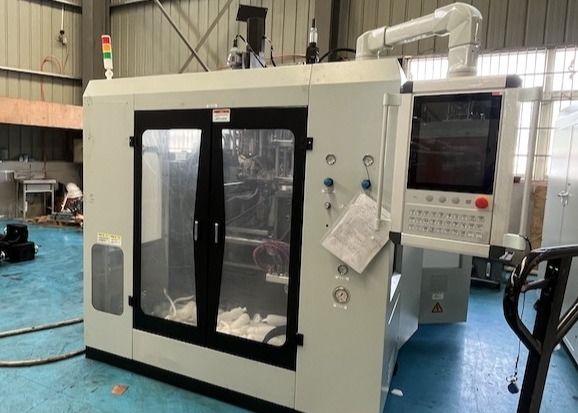

تصویر بزرگ :  2L Plastic Extrusion Molding Machine Meper 55D 45 HDPE Plasticizing Ability

جزئیات محصول:
Place of Origin: China
نام تجاری: MEPER
گواهی: CE/ISO9001:2008
Model Number: 5D 55d
پرداخت:
Minimum Order Quantity: 1 set
قیمت: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
توضیحات محصول جزئیات
وزن دستگاه: 3.5 تن مواد قابل اجرا: PE PP PVC PA
نیروی چسبندگی قالب: 30 KN قطر پیچ: 55 میلی متر
نسبت باریکی پیچ: 24 تعداد سرها: 1、2、3、4،5،6
حداکثر حجم محصول: 2 لیتر سکته مغزی صفحه: 380 میلی متر
برجسته کردن:

meper extrusion blow molding machine,Meper 55D Extrusion Molding Machine,pet extrusion blow molding 2l

,

Meper 55D Extrusion Molding Machine

,

pet extrusion blow molding 2l

Product Description:

Functions

The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is capable of producing hollow products ranging from 5 milliliters to 100 liters. These products encompass a wide range of items, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts. The machine has the versatility to blow different materials such as PE, PP, PVC, PA, PC, PS, and EVA while ensuring a flawless manufacturing process.



Features:

1.1.2 Features

a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.

b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.

c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.

d) Improved design of hydraulic oil loop. Power saving, rapid and stable.

e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.

f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.

g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.

h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.

i) This machine has two blowing functions of straight cutting and oblique cutting.



Technical Parameters:

System Item Unit Basic Parameter

Basic specifications

  • Applicable materials: PE, PP, PVC, PA…
  • Max product volume: 2 L
  • Number of heads: 1, 2, 3, 4, 5, 6
  • Machine dimension (LxWxH): 2.87X2.14X2.28
  • Machine weight: 3.5 TON

Mould clamping system

  • Mould clamping force: 30 KN
  • Platen opening strokes: 120-350 MM
  • Plate stroke: 380 MM
  • Max mould sizes (WxH): 360X300 MM

Extrusion system

  • Screw diameter: 55 MM
  • Screw slenderness ratio (L/D): 24
  • Plasticizing ability (HDPE): 45 KG/H
  • Screw heating stage/zone: 3 Zone
  • Screw heating power: 10.1 KW
  • Screw fan power: 0.14 KW
  • Extrusion motor power: 11 KW

Head

  • Head heating stage/zone: 5 Zone
  • Head heating power: 6.5 KW

Energy consumption

  • Total machine power: 40 KW
  • Oil motor power: 7.5 KW
  • Air pressure: 0.6-0.8 MPA
  • Compression air volume: 0.8-1 M3/H
  • Cooling water volume: 30 L/H


Applications:

When considering the Product Application Occasions and Scenarios for the MEPER 5D 55d Extrusion Molding Machine, it is important to highlight its versatile capabilities and features. This automatic extrusion blow molding machine from China is a top-of-the-line Plastic Extrusion Molding Machine that is ideal for a wide range of applications.

The MEPER 5D 55d is suitable for use in various industries such as packaging, automotive, construction, and more. Its ability to handle materials like PE, PP, PVC, and PA make it a great choice for producing a variety of products. Whether you need to create bottles, containers, pipes, or other plastic products, this Molding Extruder Equipment is up to the task.

With a plate stroke of 380mm and a screw diameter of 55mm, the MEPER 5D 55d offers precision and reliability in the extrusion molding process. The machine's flexibility is further enhanced by the option to choose from 1, 2, 3, 4, 5, or 6 heads, allowing for customization based on specific production needs.

Businesses looking to invest in this advanced extrusion molding machine will benefit from its CE/ISO9001:2008 certification, ensuring quality and compliance with industry standards. The minimum order quantity of 1 set, negotiable price, and standard packaging details make it accessible to a wide range of customers.

Furthermore, with a delivery time of 25-35 work days, flexible payment terms including L/C and T/T, and a supply ability of 100 sets per month, the MEPER 5D 55d offers convenience and efficiency in the procurement process.



Customization:

Product Customization Services for the Plastic Extrusion Molding Machine

Brand Name: MEPER

Model Number: 5D 55d

Place of Origin: China

Certification: CE/ISO9001:2008

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: standard packaging

Delivery Time: 25-35 work days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Machine weight: 3.5ton

Applicable materials: PE, PP, PVC, PA

Max product volume: 2L

Screw slenderness ratio: 24

Mould clamping force: 30KN
