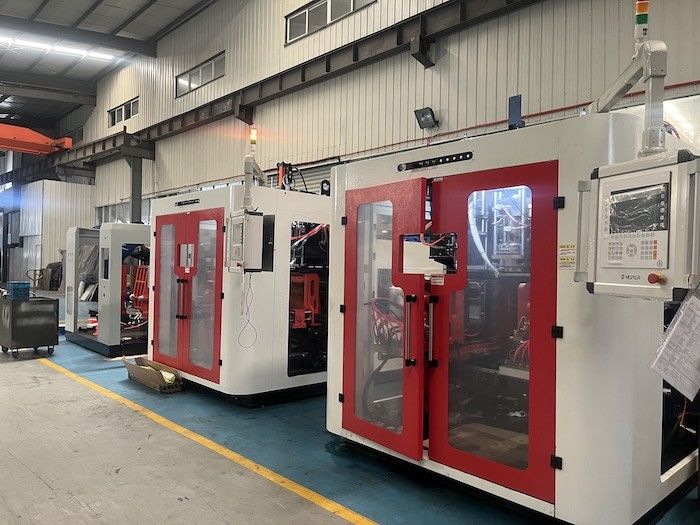

5L MP 70DF-4 Extrusion Blow Molding Machine Fully Automatic

Product Description:

MP plastic blow molding machine is designed for processing various plastic hollow products made from high molecular materials. This machine is capable of producing hollow products ranging from 5 milliliters to 100 liters. The products that can be manufactured include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts.

The MP plastic blow molding machine is versatile as it can handle different materials such as PE, PP, PVC, PA, PC, PS, and EVA. It ensures a flawless manufacturing process to produce high-quality output.

Features:

a) The extruding device features a variable frequency motor to meet the screw's rotation needs during the blowing process. It uses a slender screw design suitable for processing various materials, offering efficient plasticizing, high production output, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer to provide quick, stable, and uniform heating.

b) Installing different heads in a combined extrusion system between two machines enables the production of products with a single-layer view strip or double layers.

c) The mould clamping device adopts a toggle type and linear guider design, with a double station for faster and more stable movement of the mould platen.

d) The hydraulic oil loop has been redesigned for improved efficiency, resulting in power savings, rapid hydraulic response, and stable operation.

e) Hydraulic element installation and maintenance are made convenient with a removable and mobile oil tank feature.

f) Controlled by a computer, the entire machine features a double proportional hydraulic system with fault automatic alarm, ensuring reliable operation, high automation, and the ability to store data from up to 40 different mould sets.

g) Three operation modes - "Manual", "Semi Auto", and "Full Auto" - are available for selection.

h) The safety door is equipped with both electric and mechanical safety devices to prevent mould closing when the door is open, enhancing the safety and reliability of operation.

i) This machine offers two blowing functions: straight cutting and oblique cutting.

Technical Parameters:

System Item Unit Basic Parameter

Basic specifications
Applicable materials PE PP PVC PA…
Max product volume L 5
Number of heads SET 1,2,3,4
Machine dimension (LxWxH) M 3.6×2.3×2.36
Machine weight TON 4.9

Mould clamping system
Mould clamping force KN 90
Platen opening strokes MM 180-480
Plate stroke 300
Max mould sizes(WxH) MM 400×420

Extrusion system
Screw diameter MM 80
Screw slenderness ratio L/D 24
Plasticizing ability (HDPE) KG/H 90
Screw heating stage/zone Zone 4
Screw heating power KW 15.85
Screw fan power KW 0.28
Extrusion motor power KW 30

Head
Head heating stage/zone Zone 10
Head heating power KW 16.5

Energy consumption
Total machine power KW 80
Oil motor power KW 11
Air pressure MPA 0.6-0.8
Compression air volume M3/H 1.2
Cooling water volume M3/H 0.4

Applications:

MEPER's 7D 70FD Molding Extruder Equipment is a top-of-the-line Plastic Extrusion Machine designed and manufactured in China. With CE/ISO9001:2008 certification, this machine guarantees high quality and reliability for all your extrusion molding needs.

Whether you are in the packaging, automotive, construction, or other industries, the MEPER 7D 70FD is perfect for a wide range of applications. Its versatility in processing materials such as PE, PP, PVC, and PA make it suitable for various product manufacturing.

The auto deflashing blow moulding machine feature of this equipment ensures seamless production with minimal manual intervention, saving you time and labor costs. The screw diameter of 80mm and screw slenderness ratio of 24 further enhance its efficiency and precision in molding processes.

With a maximum product volume of 5L, this extrusion machine is ideal for producing containers, bottles, tubes, and other hollow products. The 4.9-ton machine weight provides stability during operation, ensuring consistent output quality.

Whether you require a single unit or multiple sets, MEPER offers a minimum order quantity of 1 set with negotiable pricing. The standard packaging and delivery time of 25-35 work days make acquiring this equipment convenient and efficient.

Payment terms including L/C and T/T cater to your financial preferences, and with a supply ability of 100 sets per month, MEPER ensures a steady availability of the 7D 70FD Molding Extruder Equipment for your production needs.

Packing and Shipping:

Product Packaging:

The Extrusion Molding Machine is carefully packed in a sturdy cardboard box to ensure safe transport. The machine is secured with foam padding to prevent any damage during shipping.

Shipping:

We offer fast and reliable shipping services for the Extrusion Molding Machine. Once your order is confirmed, the machine will be dispatched within 1-2 business days. You will receive a tracking number to monitor the delivery status of your package.

FAQ:

Q: What is the brand name of the extrusion molding machine?

A: The brand name is MEPER.

Q: What is the model number of the extrusion molding machine?

A: The model number is 7D 70FD.

Q: Where is the extrusion molding machine manufactured?

A: The machine is manufactured in China.

Q: What certifications does the extrusion molding machine have?

A: The machine is certified with CE/ISO9001:2008.

Q: What are the payment terms for purchasing the extrusion molding machine?

A: The payment terms accepted are L/C and T/T.
