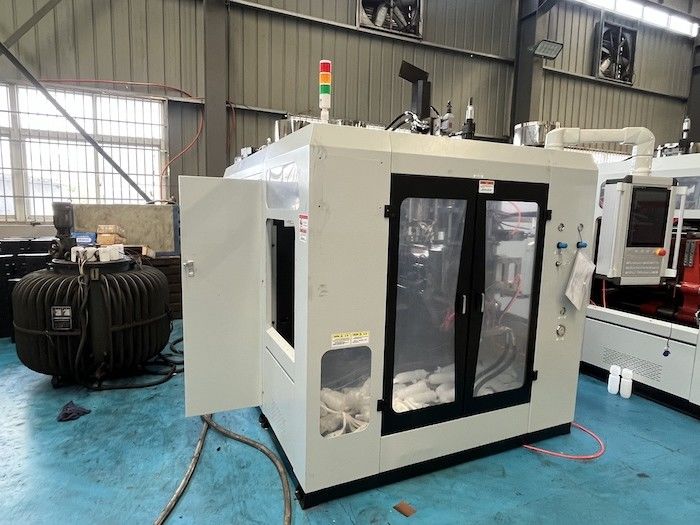

Fully Automatic MP-55D 2L Extrusion Molding Machine With 24 Slenderness Ratio

Product Description:

Functions

MP plastic blow molding machine is designed for processing various plastic hollow products made from high-molecule materials. The machine is capable of producing hollow products ranging from 5 milliliters to 100 liters. These products encompass a wide range, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts. The machine not only supports the blowing of different materials such as PE, PP, PVC, PA, PC, PS, and EVA but also ensures impeccable manufacturing processes.

Features:

a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.

b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.

c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.

d) Improved design of hydraulic oil loop. Power saving, rapid and stable.

e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.

f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.

g) Three operation modes - “Manual”, “Semi Auto”, “Full Auto”, are allowed to select.

h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.

i) This machine has two blowing functions of straight cutting and oblique cutting.

Technical Parameters:

System Item Unit Basic Parameter

Basic specifications

Applicable materials PE PP PVC PA…

Max product volume L 2

Number of heads SET 1,2,3,4,5,6

Machine dimension (LxWxH) M 2.87X2.14X2.28

Machine weight TON 3.5

Mould clamping system

Mould clamping force KN 30

Platen opening strokes MM 120-350

Plate stroke MM 380

Max mould sizes(WxH) MM 360X300

Extrusion system

Screw diameter MM 55

Screw slenderness ratio L/D 24

Plasticizing ability (HDPE) KG/H 45

Screw heating stage/zone Zone 3

Screw heating power KW 10.1

Screw fan power KW 0.14

Extrusion motor power KW 11

Head

Head heating stage/zone Zone 5

Head heating power KW 6.5

Energy consumption

Total machine power KW 40

Oil motor power KW 7.5

Air pressure MPA 0.6-0.8

Compression air volume M3/H 0.8-1

Cooling water volume L/H 30

Applications:

MEPER 5D 55d Extrusion Molding Machine is a top-of-the-line product that caters to various industrial needs. With its origin in China, this machine boasts CE/ISO9001:2008 certification, ensuring high quality and reliability.

The machine's versatility makes it suitable for a wide range of Product Application Occasions and Scenarios. One such scenario is in the production of plastic containers for the packaging industry. The fully automatic blow moulding machine capability of the MEPER 5D 55d allows for efficient and precise manufacturing of bottles and containers.

Another key application is in the manufacturing of industrial components using materials such as PE, PP, PVC, and PA. The automatic extrusion blow molding machine feature of the MEPER 5D 55d ensures consistent and high-quality output, meeting the demands of various industries.

Due to its impressive Plasticizing ability of 45 for HDPE, this machine is ideal for producing a wide range of products with different material requirements. Its ability to handle a maximum product volume of 2L makes it suitable for manufacturing containers of varying sizes.

Weighing 3.5 tons, the MEPER 5D 55d is a robust machine built for durability and long-term use. Its Screw slenderness ratio of 24 further enhances its efficiency in processing plastic materials.

With a Minimum Order Quantity of just 1 set and negotiable pricing, the MEPER 5D 55d offers flexibility to businesses of all sizes. The standard packaging and delivery time of 25-35 work days ensure a smooth procurement process for customers.

Payment options such as L/C and T/T make transactions convenient, while the Supply Ability of 100 sets per month ensures a steady availability of this high-performing machine in the market.

Customization:

Product Customization Services for the Plastic Extrusion Molding Machine:

- Brand Name: MEPER

- Model Number: 5D 55d

- Place of Origin: China

- Certification: CE/ISO9001:2008

- Minimum Order Quantity: 1 set

- Price: negotiable

- Packaging Details: standard packaging

- Delivery Time: 25-35 work days

- Payment Terms: L/C, T/T

- Supply Ability: 100 sets per month

- Screw slenderness ratio: 24

- Applicable materials: PE PP PVC PA

- Plate stroke: 380mm

- Max product volume: 2L

- Machine weight: 3.5ton

This fully automatic moulding machine also functions as an auto deflashing blow moulding machine.
